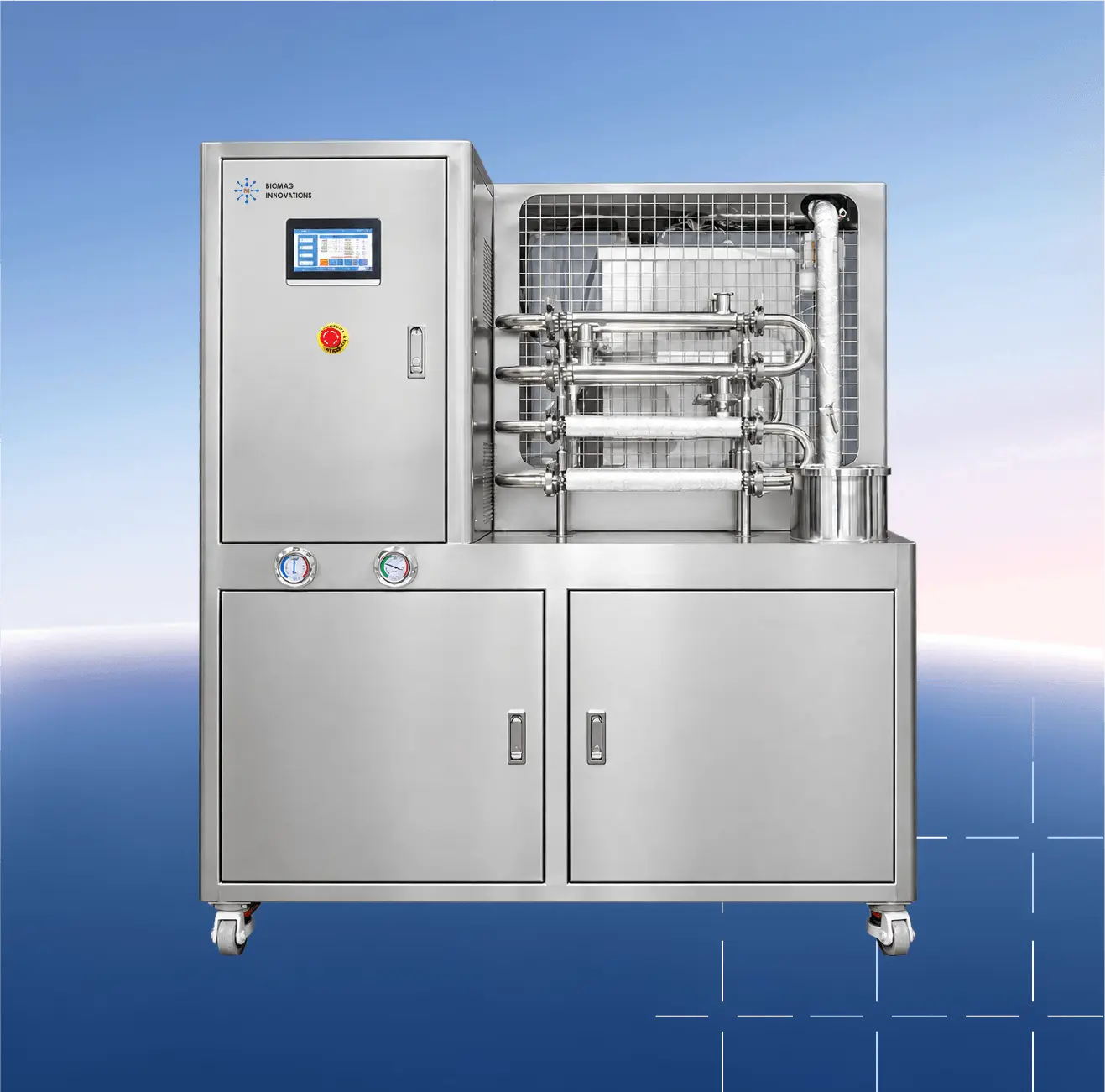

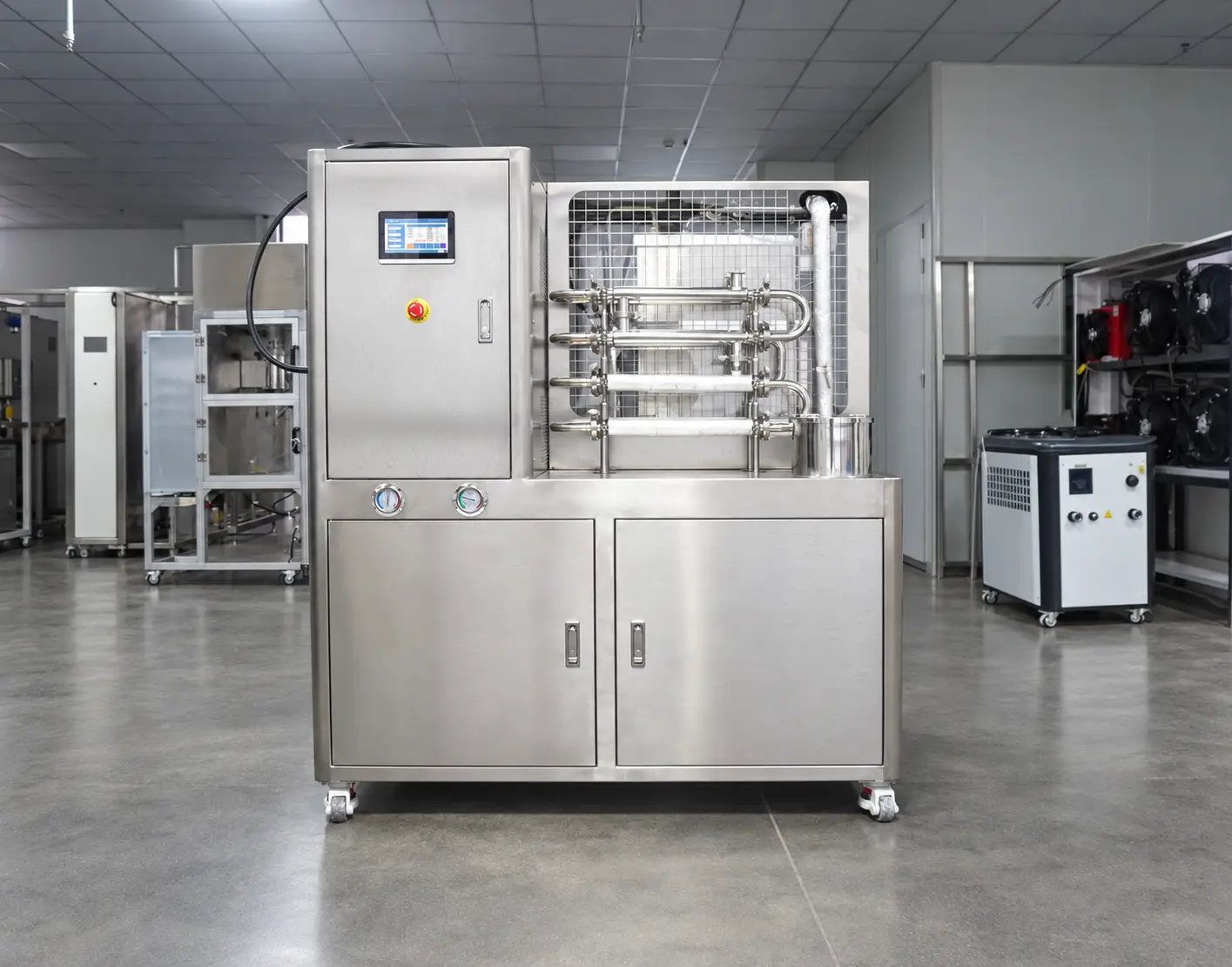

FluxFresh™ Lab
Advanced Research. Precise Process Control.
FluxFresh™ Lab is a laboratory-scale contactless induced electric field heating system designed for process research, parameter optimization, and application development.The system enables researchers to precisely control electric field, frequency, power, temperature, and flow conditions, providing a flexible platform for studying thermal and field-assisted processing of liquid and multiphase materials.From fundamental mechanism studies to process validation, FluxFresh™ Lab helps bridge the gap between laboratory research and pilot-scale development.
- Food Processing Research — Study heating, pasteurization, and quality changes in liquid and multiphase foods.
- Heat-Sensitive Materials — Explore controlled processing approaches for temperature-sensitive products.
- Enzyme Inactivation — Investigate thermal and field-assisted enzyme inactivation processes.
- Extraction Studies — Evaluate enhanced extraction and mass-transfer processes for natural ingredients.
- High-Viscosity & Particle-Containing Foods — Study simultaneous heating behavior of liquid phases and solid particles.
- Process Optimization — Determine suitable operating parameters before pilot-scale validation.
- Contactless Energy Transfer — Generates an induced electric field inside the processing material without direct electrode contact.
- Volumetric Heating — Energy is generated directly within the product for rapid and efficient heating.
- Flexible Parameter Control — Adjustable electric field, frequency, power, temperature, and flow conditions.
- Continuous-Flow Processing — Designed for controlled laboratory-scale continuous processing experiments.
- Multiphase Compatibility — Supports liquids, viscous materials, and systems containing suspended solid particles.
- Research-Oriented Design — Provides a flexible experimental platform for mechanism studies and process development.
Contactless Induced Electric Field Heating
FluxFresh™ Lab uses a controlled oscillating magnetic field to induce an electric field directly within the continuously flowing material.
Unlike conventional electrode-based electrical heating methods, the process does not require direct electrical contact between electrodes and the product. Energy is generated throughout the material volume, enabling rapid heating while supporting uniform energy delivery to both liquid phases and suspended particles.
Adjustable operating parameters allow researchers to investigate the combined effects of electric field, frequency, power, temperature, flow rate, and treatment time under controlled laboratory conditions.
Electrical Energy Input → Oscillating Magnetic Field → Induced Electric Field → Volumetric Heating → Controlled Process Outcome
Performance
Specifications
Parameter
Specification
Input Power
30–300+ kW
Electric Field Strength
0–75 V/cm
Frequency
20–100 kHz
Throughput (Liquid)
0.5–50+ m³/h
Operating Temperature
Up to 90 °C
Pressure Range
Up to 1.0 MPa
Control System
PLC + SCADA
System Configuration
Custom Engineered
Data Logging
Yes
Key Benefits
Precise Control for Laboratory Research
Independently adjust key processing parameters to meet different experimental objectives.
Rapid Heating with Reduced Thermal Exposure
Achieve fast temperature rise while reducing unnecessary prolonged thermal treatment.
Study Liquid–Solid Heating Behavior
Evaluate simultaneous heating performance in multiphase systems containing liquid and solid components.
Explore Thermal and Field-Assisted Effects
Provide a controlled platform for investigating both heating performance and potential field-assisted effects.
Generate Reproducible Experimental Data
Maintain consistent processing conditions for comparison, optimization, and mechanism studies.
Prepare for Pilot-Scale Validation
Establish process parameters and operating windows before moving to larger-scale FluxFresh™ systems.
Explore New Processing Possibilities in the Lab
FluxFresh™ Lab gives researchers a flexible platform to investigate contactless induced electric field heating, understand material responses, and develop new processing strategies under precisely controlled conditions.
