Magnetic field-assisted Fermentation Device

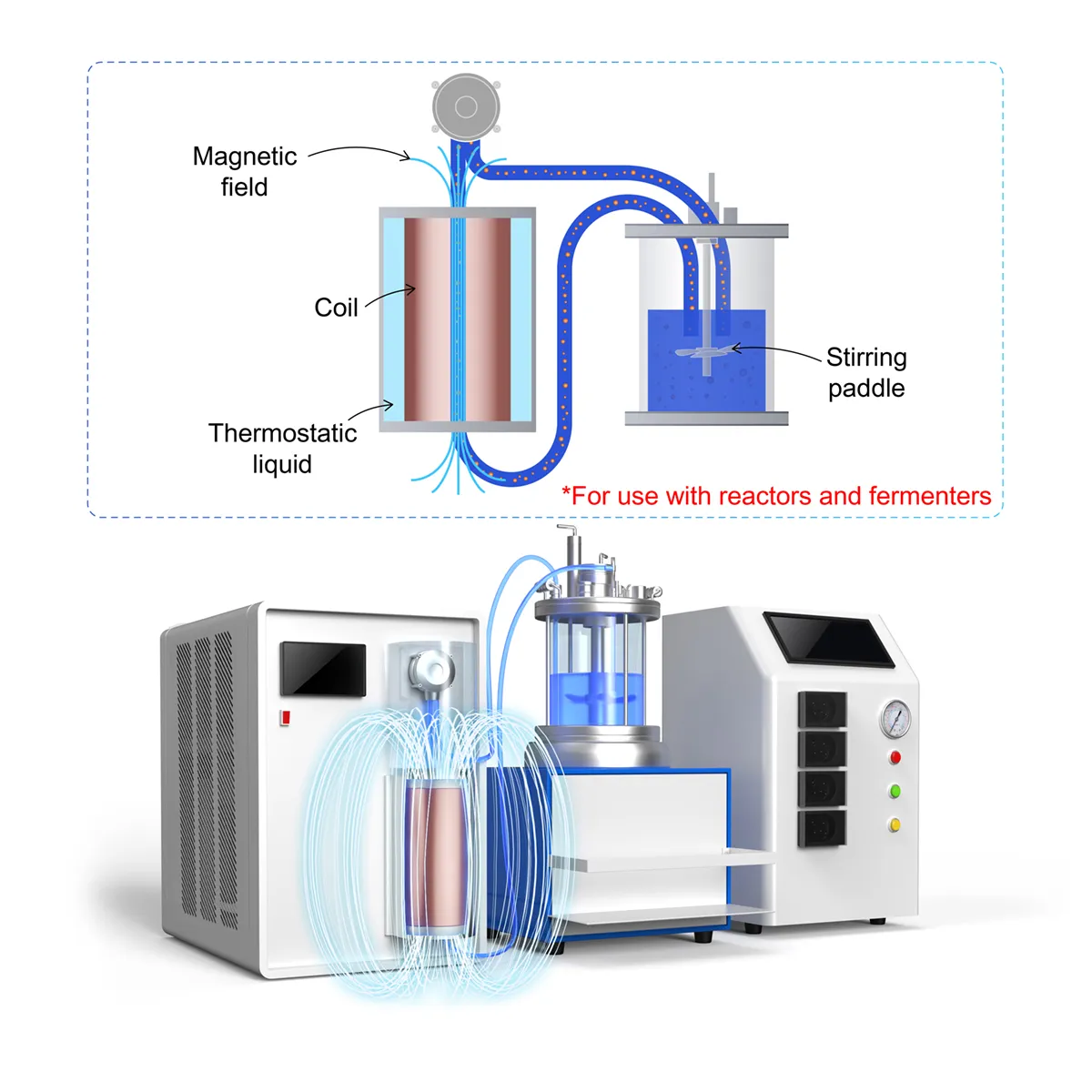

It can be used to assist efficient and specific microbial fermentation, cytosol culture, catalytic synthesis and enzymatic reaction, enhance microbial and cellular physiological metabolism and enzyme activity, modulate reaction process, free energy and mass transfer under magnetic field environment.

Brand: Biomag Innovations

Technical specifications

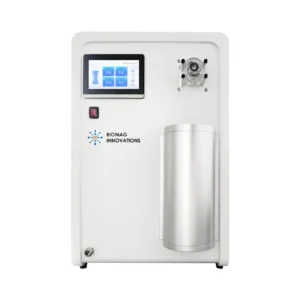

Magnetic field-assisted Fermentation Device

Model No.MAF-1K
Magnetic field strength range0 ~20 mT (adjustable)
Frequency range0 ~ 1000 Hz (adjustable)
Temperature rangeRT ~ 60 ℃ (adjustable)
Flow rate0.1~180 L/h
CapacityCompatible with fermentation tanks of various volumes
Power supply115 / 230 V ±10%,50 / 60 Hz
Power consumption15 kW

Application case

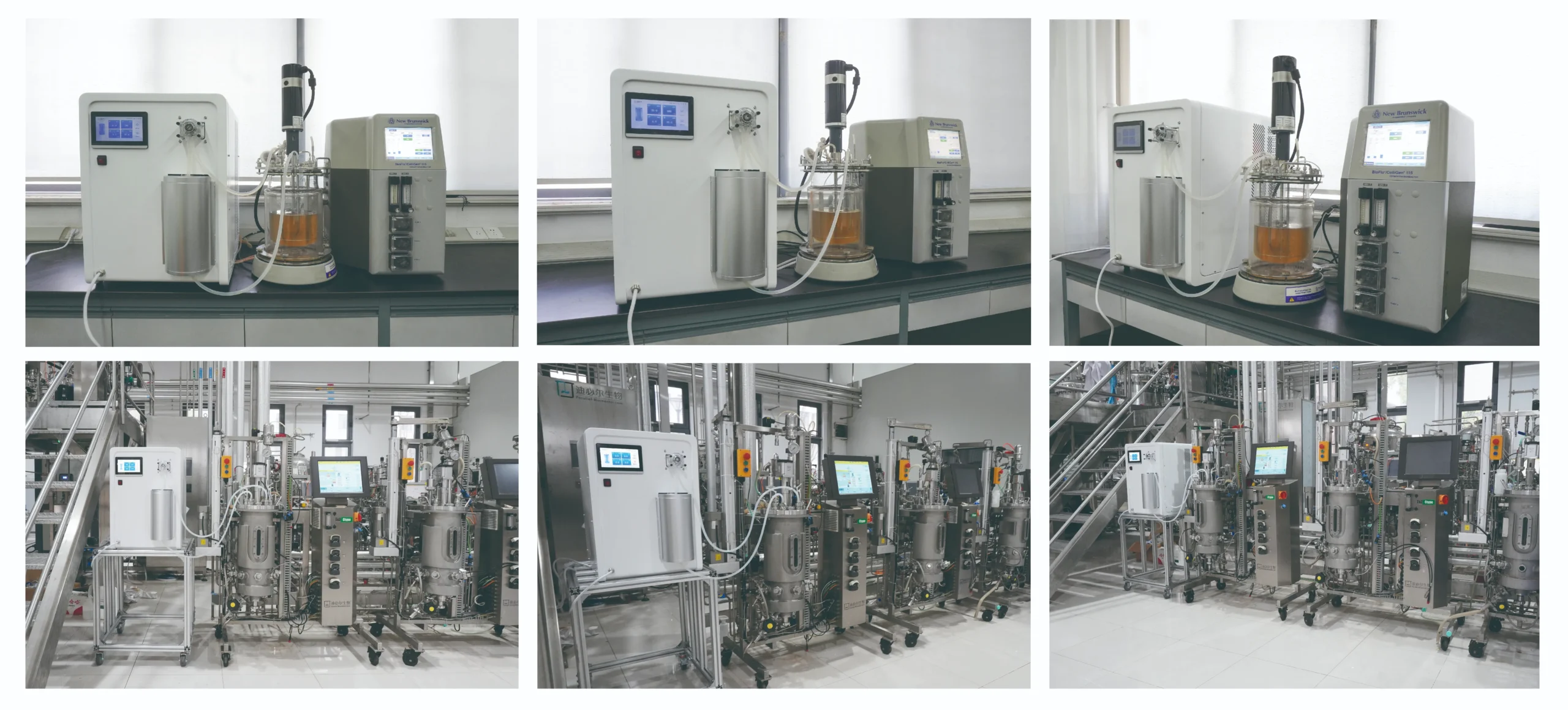

Real-life photos of the equipment
